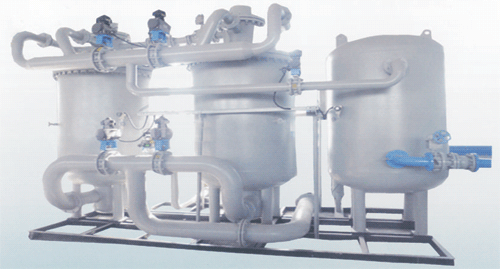

          常壓解吸變壓吸附制氧設備(Vacuum Desorption PSA Oxygen Plant)

          流程簡介:

          原料空氣經壓縮機增壓,壓縮空氣進緩沖罐后進入吸附器,空氣中的N2、H2O、CO2及碳?xì)浠衔锉晃絼┪,同時獲得氧氣,吸附塔吸附飽和后,自動切換,該吸附器減壓至大氣壓再生。本設備有兩個吸附塔交替使用,連續獲得氧產品。

          PROCESS DESCRIPTION
          Feed air is compressed by the air compressor. The compressed air is led to the buffer tank and then to the adsorber, nitrogen, moisture, carbon dioxide and hydrocarbon in the air are adsorbed by adsorbent, product oxygen is obtained at the same time. Once the adsorbent in the adsorber is saturated, the system will change over automatically, and this adsorber will be depressurized to atmospheric pressure for regeneration. There are two adsorbers working alternatively to generate product oxygen continuously.

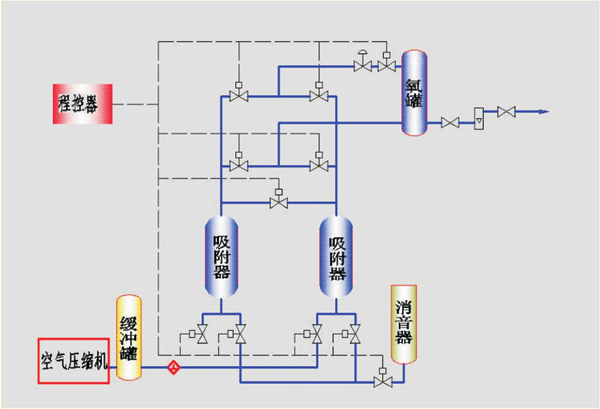

          PSA制氧設備流程示意圖:PROCESS FLOW SHEET FOR PSA OXYGEN PLANT


          型號規格

          型號
          Model

          氧氣純度
          O2 Purity

          氧氣輸出壓力
          O2 Output Pressure
          氧氣產量
          Nm3/h
          O2 Output
          裝機功率
          Kw
          Power
          占地面積
          m×m
          Area Taken
          PSAO-5 90%至95% 0.2MPa 5 7.5 4×2
          PSAO-10 10 15 4×3
          PSAO-15 15 30 4×5
          PSAO-20 20 37 4×7
          PSAO-30 30 45 4×8
          PSAO-40 40 55 4×10
          PSAO-50 50 65 5×10
          PSAO-70 70 95 6×10
          PSAO-80 80 120 7×10
          PSAO-100 100 132 8×12
          PSAO-150 150 200 12×12


          通用條件:
          電力:低壓電源:3相
          冷卻水:溫度≤32℃
          安裝場地:室內非防爆地區,環境溫度5~35℃


          Utilities:
          Power: LT power supply: 3-phase
          Cooling Water: Temperature ≤32℃
          Installation Area: Non Explosion-proof Area



          應用領域:APPLICATION FIELD

          黑色金屬冶煉
          Ferrous Metal Refinery
          富氧噴煤煉鐵、電爐煉鋼等
          Oxygen –rich PCI iron making & EAR steel making
          有色金屬冶煉
          Non-ferrous Metal Refinery
          煉銅、煉鋅、煉鉛、煉金、煉鎳等
          Copper, Zinc, Lead, Gold and Nickel refinery
          化工造氣
          Chemical Gas
          合成氨、甲醇、乙烯、乙二醇生產等
          Ammonia, methanol, ethylene and glycol production etc.
          富氧燃燒
          Oxygen Rich Combustion
          工業鍋爐、玻璃爐窯、電解鋁等
          Industrial boiler, glass kiln & Electrolytic Aluminum
          造紙業
          Paper Making
          造紙工業氧氣蒸解、漂白、黑液氧化
          Oxygen cooking, bleaching & oxidization of black liquor in paper making industry
          環保領域
          Environmental Protection
          氧氣曝氣活性污泥法處理工業廢水、垃圾焚燒
          Oxygen aeration activated sludge process for industrial waste water treatment & waste incineration
          玻璃加工
          Glass Making
          富氧助燃技術應用于玻璃熔窯
          Oxygen-rich combustion technology applied in glass kiln
          煤礦生產
          Coal Mine Production
          煤礦機械修理廠、加工制造、修理
          Repair Machining, Manufa cture & main tenance of Coal Mine Machinetry
